RACGO CAMLOCK FITTINGS
QUALITY CAM & GROOVE STYLE HOSE COUPLINGS

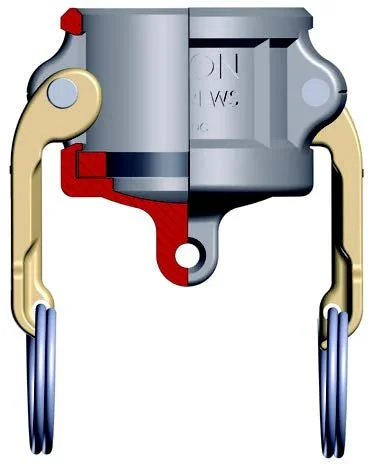

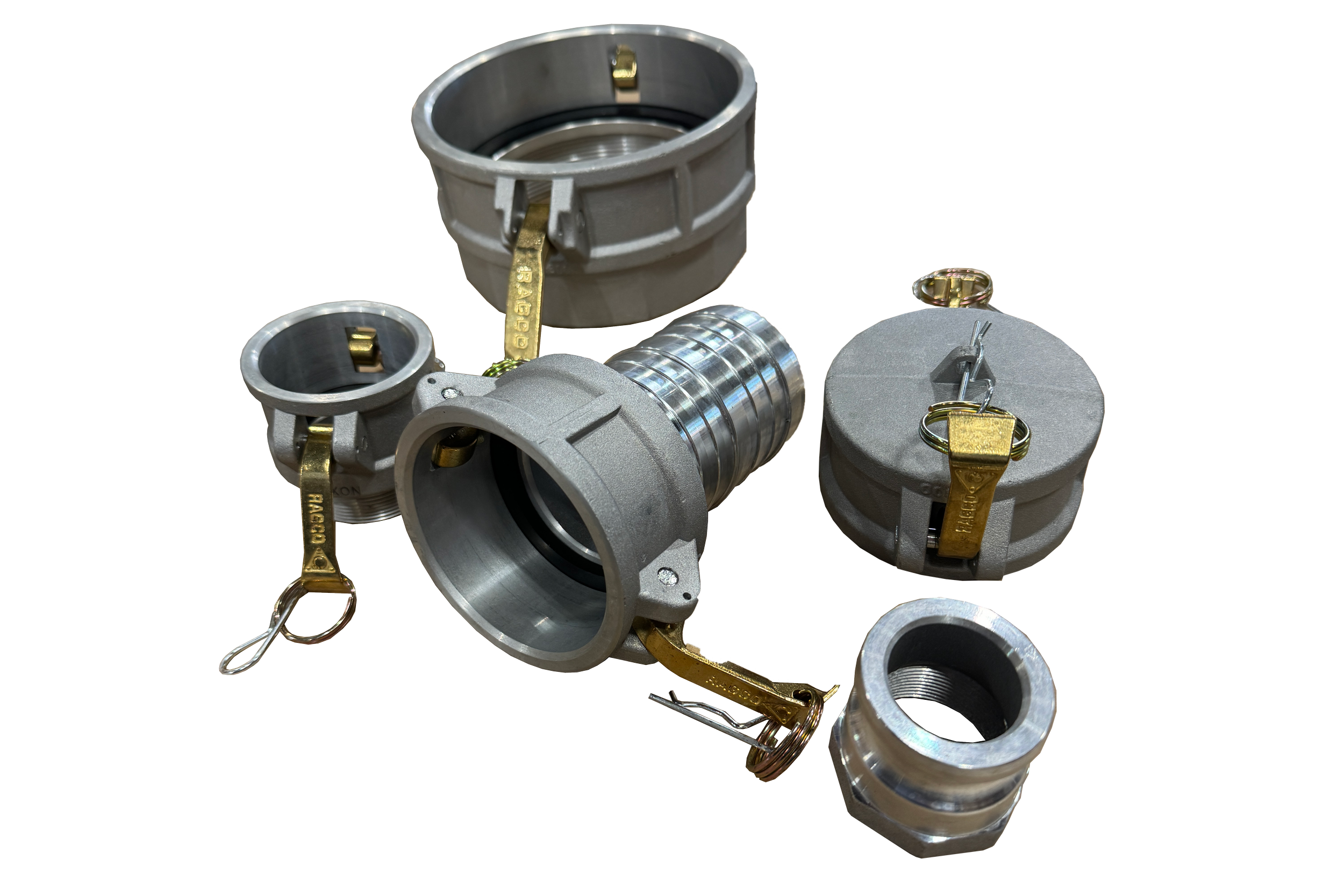

Ragco offers a comprehensive range of cam & groove style couplings and adapters (camlocks) engineered for reliable, leak-free connections across industrial fluid-transfer applications; available in aluminum for lightweight, cost-effective performance, stainless steel for superior corrosion resistance and durability in harsh or sanitary environments, and brass for excellent machinability and compatibility with water and non-corrosive fluids. Each fitting is manufactured to industry standards, inspected for dimensional accuracy and sealing integrity, and stocked in common sizes and configurations to minimize lead times. Ragco’s selections include standard couplers, adapters, dust caps, and dust plugs.
CLICK ANY PART FOR DIMENSIONAL CHART
Features
• Interchanges with all products produced to A-A-59326D.
• All couplers include locking safety clip.

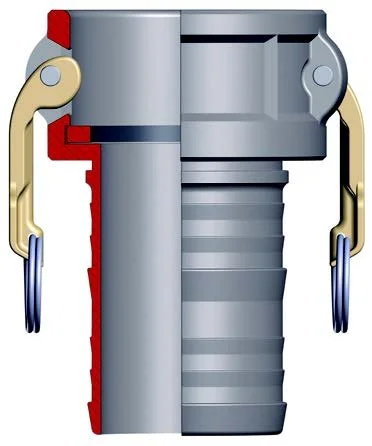

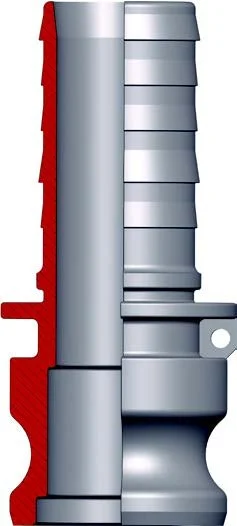

• Ragco Part C coupler & Part E adapter manufactured with CRIMPABLE hose shank.
• Aluminum couplers available with brass or stainless steel cam arms.
• Brass fittings are produced by forging process providing greater structural integrity and mechanical strength.
Specifications
• Ragco cam & groove couplers and adapters are produced to interchange with all product produced to Commercial Item Description A-A-59326D.
• No standard exists for the 1/2", 5", and 8" fittings, and generally these sizes do not interchange with other manufacturers' products.
• Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.
• Designed for use with liquids; consult a Ragco member for specific recommendations.
Operation
1. To make connection, slide the adapter into the coupler and, with normal hand pressure, press the cam levers down.
2. Uncoupling is as quick and simple as coupling. Just lift the cam levers and remove the adapter.

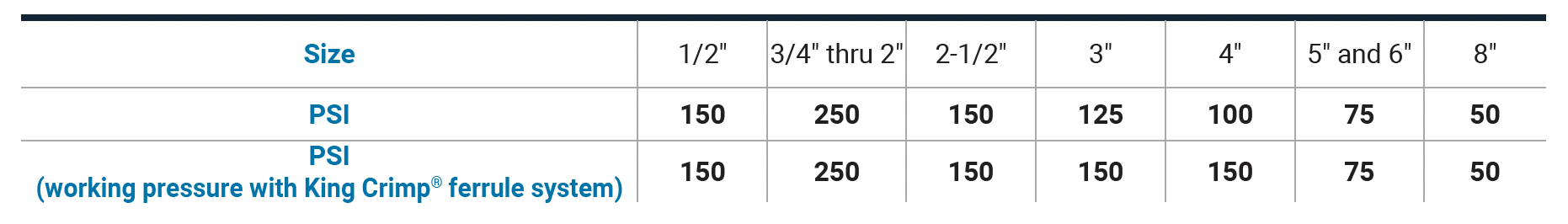

Pressure Ratings
Recommendations based on the use of mating Ragco fittings at ambient temperature 70°F (21°C) with standard nitrile rubber seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon. Ragco couplers' and adapters' maximum working pressures are as follows:

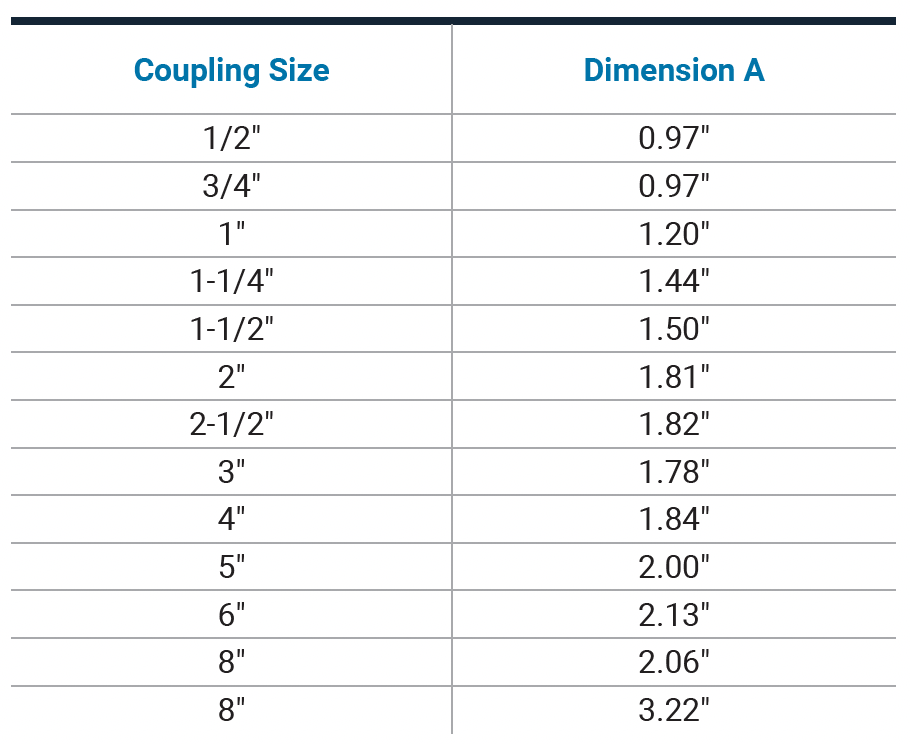

Cam & Groove Nominal Take-Up Lengths
